Lumbar Spine Imaging

Editor: Santosh K. Selvarajan Updated: 3/6/2023 2:36:48 PM

Introduction

Low back pain is a ubiquitous symptom. It is the second most common complaint to visit a provider in the United States.[1] It accounted for 4.4% of emergency department visits from 2000 to 2016.[2] The lifetime prevalence of back pain is approximately 70% to 85%.[3] The causes for low back pain range from muscle spasms and disc protrusions to more severe entities such as discitis, osteomyelitis, and malignancy. Imaging provides varied details based on modality. The most common modalities include radiographs, computed tomography (CT), magnetic resonance imaging (MRI). Ultrasound (US) and nuclear medicine imaging are occasionally choices. The American College of Radiology enlists appropriateness criteria for evaluating back pain. Patients with uncomplicated back pain do not require imaging unless it persists for more than six weeks. However, patients with cauda equina syndrome, malignancy, suspected infection, or fracture require further imaging.[4]

Symptoms of cauda equina syndrome would include saddle anesthesia, bowel or bladder incontinence. Patients presenting with fever and low back pain or patients with a history of drug misuse or immunosuppression should lead to the suspicion of an infection. While plain radiographs are usually the first imaging modality, depending on the acuity, medical condition, and general contraindications to imaging modalities, the appropriate modality merits consideration. As a broad rule, whenever there is a concern for infection, or there is a suspicion for malignancy, contrast-enhanced studies are the recommended approach. ACR appropriateness criteria help in choosing the right modality in a variety of circumstances. CT is the imaging modality of choice in patients with suspected fractures. In patients who are possible candidates for augmentation procedures, MRI is the modality of choice. MRI is also highly sensitive for evaluating tumors and metastasis. It is also the modality of choice for assessing cord compression.

Anatomy

Register For Free And Read The Full Article
Get the answers you need instantly with the StatPearls Clinical Decision Support tool. StatPearls spent the last decade developing the largest and most updated Point-of Care resource ever developed. Earn CME/CE by searching and reading articles.
  • Dropdown arrow Search engine and full access to all medical articles
  • Dropdown arrow 10 free questions in your specialty
  • Dropdown arrow Free CME/CE Activities
  • Dropdown arrow Free daily question in your email
  • Dropdown arrow Save favorite articles to your dashboard
  • Dropdown arrow Emails offering discounts

Learn more about a Subscription to StatPearls Point-of-Care

Anatomy

The lumbar spine consists of 5 lumbar vertebral bodies. However, there are many anatomical variants; however, identifying a transitional vertebra at the lumbosacral junction as lumbarization of S1 or sacralization of L5 clinically helps during surgical management. The attachment of the iliolumbar ligament and the size of the vertebral body helps in identifying the L5 vertebral body; the ligament extends from the L5 transverse process to the iliac crest. The spinal cord ends approximately at the level of L1-L2. The group of nerve roots caudal to this forms the cauda equina, which consists of free-floating nerve roots in the central canal as they exit at the corresponding levels in the lumbosacral spine.

The disc spaces are composed of the nucleus pulposus and annulus fibrosis. The standardized spine nomenclature is based on the recommendations from the American Society for Spine Radiology, American Society for Neuroradiology, and North American Spine Society. In 2014, Lumbar Disc Nomenclature: version 2.0 was released, updating the original version from 2001.[5] The disc herniations are an extension of the disc material beyond the confines of the disc space. Posterior disc herniations contribute to nerve impingements. Disc herniations are classified based on the circumference of disc involvement; when less than 25% of the circumference of the disc is involved, it is termed a protrusion, and when it involves greater than 25% of the circumference, it is called a bulge. When protrusions have a length greater than the width, they are called extrusions (see Image. Lumbar Spine MRI, Disc Extrusion). When the extruded disc segment loses contact with the disc, it is called a sequestered disc. In the axial plane, disc protrusions are classified based on the location as central, paracentral, foraminal, and extraforaminal. Depending on the location of the disc protrusion, different nerve roots are involved. For example, a paracentral disc protrusion affects the traversing lower level nerve root, whereas a foraminal disc protrusion affects the exiting nerve root at the same level.

Plain Films

Imaging Modalities

There is a wide array of imaging modalities for evaluating the lumbar spine. The type of test depends on the pathology, the amount of radiation involved, contraindications, and any allergy to contrast. The American College of Radiology considers these and has recommendations on the kind of test based on symptoms. ACR appropriateness criteria can help to select the right imaging modality based on suspected pathology for symptoms such as suspected spine trauma, low back pain, low back pain with fever, etc.[4][6]

Plain Radiograph

Radiographs are economical, portable, and readily available. They are the first-line modality for evaluating back pain. Radiographs can evaluate vertebral body height, displaced fractures, and dislocations. They help in assessing the stability of the spine with flexion and extension views. However, evaluation of nondisplaced fractures, metastases, and soft-tissue abnormalities are subject to limitations of overlying hardware, positioning, and bowel gas. The radiation dose from radiographs also limits their use in pregnant patients.

Computed Tomography

CT is a reliable method for evaluating the lumbar spine and provides great bony detail for assessing trauma, non displaced fractures, complex fractures, scoliosis, pre, and post-operative patients (see Image. Grade II Spondylolisthesis, CT). CT is beneficial following surgery to evaluate the surgical hardware and bone graft material, which are not well assessed on MRI. CT myelograms are useful in patients with various spinal equipment and in patients who have a contraindication for MRI. These take place after instilling a radiopaque dye into the subarachnoid space by lumbar puncture under fluoroscopy or CT guidance.[7] CT myelogram is also important for diagnosing occult sites of CSF leak following lumbar spine surgery or trauma.[8] Contraindications for CT myelogram include pregnancy and other general contraindications for a lumbar puncture, such as severe bleeding disorders and elevated intracranial pressure.

Magnetic Resonance

MRI is one of the most sensitive and specific modalities for evaluating the lumbar spine. Moreover, there are no side effects of radiation (see Image. Magnetic Resonance Imaging, Lumbar). It provides information about the vertebral bodies, disc spaces, spinal canal, including the meninges, spinal cord, conus, cauda equina, and exiting nerve roots. Multiple sequences are obtained in different planes, each of which helps in evaluating various pathologies (see Image. Lumbar Disc Degeneration, Multiple Levels). The most common sequences include sagittal and axial T1 and T2 and a sagittal STIR (short tau inversion recovery). See Image. Sagittal MRI of Lumbar Spine With Spondylolisthesis, L3-4 and L4-5. Post-contrast T1 weighted sequence is useful for evaluating spinal infections, postoperative complications, vascular malformation, primary spinal tumors, and metastases. Prostate metastasis, which is frequently visible in the lumbar spine, can also be assessed on MRI. Complications associated with metastatic disease, such as cord compression, can also be diagnosed on MRI. STIR sequences are beneficial in assessing marrow edema, which produces an increased signal on these sequences.[9][10][11]

Ultrasonography

Ultrasonography helps to evaluate the lumbar spine in neonates. It can give information on congenital abnormalities of the spinal cord during a bedside evaluation and help assess CSF pulsations. In adults, it helps to assess for superficial collections and in planning percutaneous interventions.

Nuclear Medicine

Bone scan using radioactive tracer technetium 99m methylene diphosphonate is useful in evaluating active bone formation in the body like osteoblastic metastases from prostate cancer. However, fractures can also appear as false positives on bone scans performed for metastasis. F-18 FDG-PET/CT involves an injection of a radiopharmaceutical, 18F FDG, which is seen preferentially at sites of abnormal glucose metabolism. A fused image of PET scan and a CT scan of the whole body helps to localize the metabolic abnormality accurately. FDG PET scans help evaluate bony metastases and spinal cord masses. However, they can also be positive in infections such as vertebral body osteomyelitis as there is an altered glucose mechanism at the site of the infection.

18F NaF PET/CT is a more recent radiotracer imaging for evaluating osseous metastasis and is superior in imaging quality compared to a technetium 99 bone scan.[12]

Angiography

Angiography can help identify and treat vascular malformations in the lower spine, including arteriovenous malformations and dural fistulas. In patients with trauma,  they can help identify and direct treatment for arterial pseudoaneurysms and blood leaks. Preoperative embolization can be performed for bone tumors in the spine to reduce blood loss during surgery.

Clinical Significance

The lumbar spine pathology is myriad but can be classified anatomically into lesions of the bone, disc, meninges, spinal cord, or paraspinal region. Choosing an appropriate imaging modality provides sufficient information based on the etiology (trauma, congenital, degenerative, infective, vascular, and neoplasm). The more common conditions are discussed below.

Degenerative Disc Disease (DJD)

DJD is the most common etiology for back pain and increases with age. Mechanical stress and trauma are also significant contributors. A healthy disc is hyperintense on the T2 weighted sequence. Aging produces changes in the disc space signal. There are also associated changes in the endplates termed Modic changes.[13][14]

  • Modic type I: Linear edema signal along the endplates, which is hypointense on T1 and hyperintense on T2 sequences
  • Modic type II: Linear fat signal along the endplates, which is T1 and T2 hyperintense
  • Modic type III: Linear sclerotic signal along the endplates, which T1 and T2 hypointense

Changes in the disc, along with facet arthropathy, leads to spinal stenosis. Disc herniations have been explained under the section heading of anatomy. However, spinal stenosis can also occur from a variety of other etiologies, including congenital narrowing of the central canal from shortened pedicles, epidural masses, traumatic fractures, and deposition of fat in the epidural space (epidural lipomatosis).

Discitis Osteomyelitis

It is an infection of the intervertebral disc and the adjacent vertebral bodies. Hematogenous spread is the most common etiology followed by post-operative complications or following trauma. Clinically, patients can present with long-standing low back pain along with fever. MRI is the appropriate modality for evaluating spinal discitis or osteomyelitis. There is an abnormal signal within the involved disc along with marrow edema and endplate irregularity in the adjacent vertebral bodies. Post-contrast MRI will accurately delineate the extent of disc involvement and its extension into the adjacent vertebral bodies, paraspinal region, and spinal canal. It will also characterize the spinal canal extension into epidural, intradural, leptomeningeal involvement. 3D reconstructions from CT may be useful for surgical hardware placement if required. The clinician can drain the paraspinal abscess with the help of CT or ultrasound. Occult spinal infections can be better evaluated with WBC-tagged nuclear medicine imaging.

Spinal Canal Masses

These classify from the inside out as intramedullary, extramedullary-intradural, and extradural masses. MRI with contrast is the most appropriate imaging for spinal canal mass evaluation. The most common masses in each category are listed below.

The common intramedullary mass lesions are tumefactive demyelination, tumors, and vascular malformations. Most tumors will expand the spinal cord and have edema, hemorrhage, and an enhancing component. WHile tumefactive demyelination may have a similar appearance to masses on initial imaging, it will improve after appropriate treatment. Serpegenous flow voids and sometimes subarachnoid hemorrhage may appear in the case of vascular malformations. MRA of the spine and 3D MR sequences will help localize and plan intervention and angiograms in vascular lesions. However, conventional angiography is the diagnostic imaging of choice for evaluating the origin of the arteriovenous malformation (AVM) and dural fistulas.

The extramedullary-intradural masses are usually comprised of meningiomas, schwannomas, intradural lipomas, epidermoids, arachnoid cysts, and metastases. These are seen external to the cord but within the dura. On axial images, there is the widening of the subarachnoid space with the displacement of the cord. Most of these lesions have typical imaging characteristics on MRI.

Extradural lesions include epidural abscess, epidural hematoma, tumors of the adjacent vertebral bodies, and epidural lipomatosis. The dura lifts off from the vertebral body or lamina attachments, and multiplanar images from MRI best characterize these lesions.

Trauma

Elaborate thoracolumbar spine injury classification systems exist which classify vertebral body fractures and dictate the treatment algorithm. Traditionally,  vertebral body fractures are classified based on the number of columns involved. The 3 column model describes

  1. The anterior column comprises the anterior longitudinal ligament and the anterior half of the body.
  2. The middle column consists of the posterior half and the posterior longitudinal ligament.
  3. The posterior column consists of the supra and interspinous ligaments, ligamentum flavum, and facet joints.

Fractures involving two or more columns are termed unstable. CT is the imaging modality of choice in acute trauma to delineate the bony abnormalities and MRI to evaluate ligamentous injuries. Additionally, MRI in spinal trauma will provide information on epidural hemorrhage, subarachnoid hemorrhage, cord compression, and cord transections. Any neurological deficits associated with spinal trauma should undergo an evaluation with MRI. When lumbar spine fractures are detected, the clinician should also assess for visceral injury, including the peritoneum and retroperitoneum. Approximately 51% of patients with transverse fractures also have a concomitant abdominal visceral injury.[15]

Postoperative Lumbar Spine Imaging

With an increasing number of spine surgeries, imaging of postoperative complications has also become very common. Complications classify as early and late complications. Early complications include hardware malpositioning, hematoma, infection, and CSF leakage. Late complications include recurrent disc herniation, failure of fusion, hardware failure, infection (discitis, osteomyelitis, prevertebral, paraspinal, and epidural abscess), epidural fibrosis, and arachnoiditis.[16] Recurrent disc herniation is distinguishable from granulation tissue that develops following surgery. On imaging, recurrent disc enhances less avidly than granulation tissue. Disc herniation can have a rim enhancing pattern of enhancement. While hardware failure, non-fusion can be evaluated on CT, MRI is necessary to diagnose most of the other postoperative complications like epidural fibrosis and arachnoiditis.

In conclusion, the lumbar spine is assessable on multiple modalities, and these modalities are complementary to each other. Choosing appropriate modalities wisely leads to better patient care and proper diagnosis and improved healthcare costs.

Media


(Click Image to Enlarge)
<p>Magnetic Resonance Imaging, Lumbar. The image shows T2-weighted sagittal and axial views of lumbar MRI.</p>

Magnetic Resonance Imaging, Lumbar. The image shows T2-weighted sagittal and axial views of lumbar MRI.


Contributed by S Dulebohn, MD


(Click Image to Enlarge)

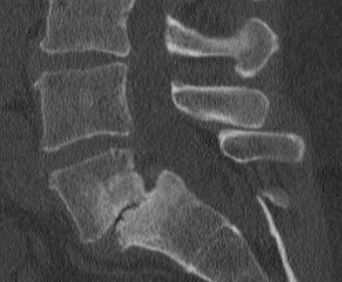

<p>Grade II Spondylolisthesis, CT. Lumbar spine sagittal CT of L5-S1 revealing grade II spondylolisthesis.</p>

Grade II Spondylolisthesis, CT. Lumbar spine sagittal CT of L5-S1 revealing grade II spondylolisthesis.


Contributed by C Gillis, MD, and S Tenny, MD


(Click Image to Enlarge)

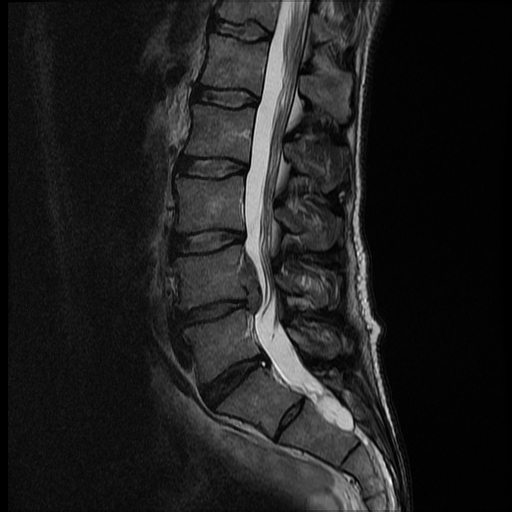

<p>Sagittal MRI of Lumbar Spine With Spondylolisthesis, L3-4 and L4-5.</p>

Sagittal MRI of Lumbar Spine With Spondylolisthesis, L3-4 and L4-5.


Contributed by C Gillis, MD, and S Tenny, MD


(Click Image to Enlarge)

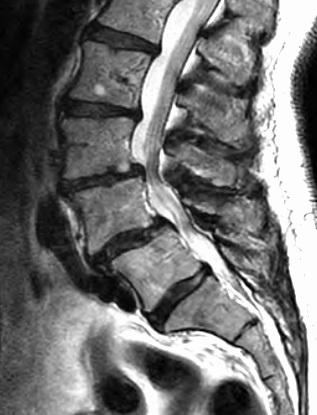

<p>Lumbar Spine MRI, Disc Extrusion</p>

Lumbar Spine MRI, Disc Extrusion


Contributed by S Dulebohn, MD


(Click Image to Enlarge)

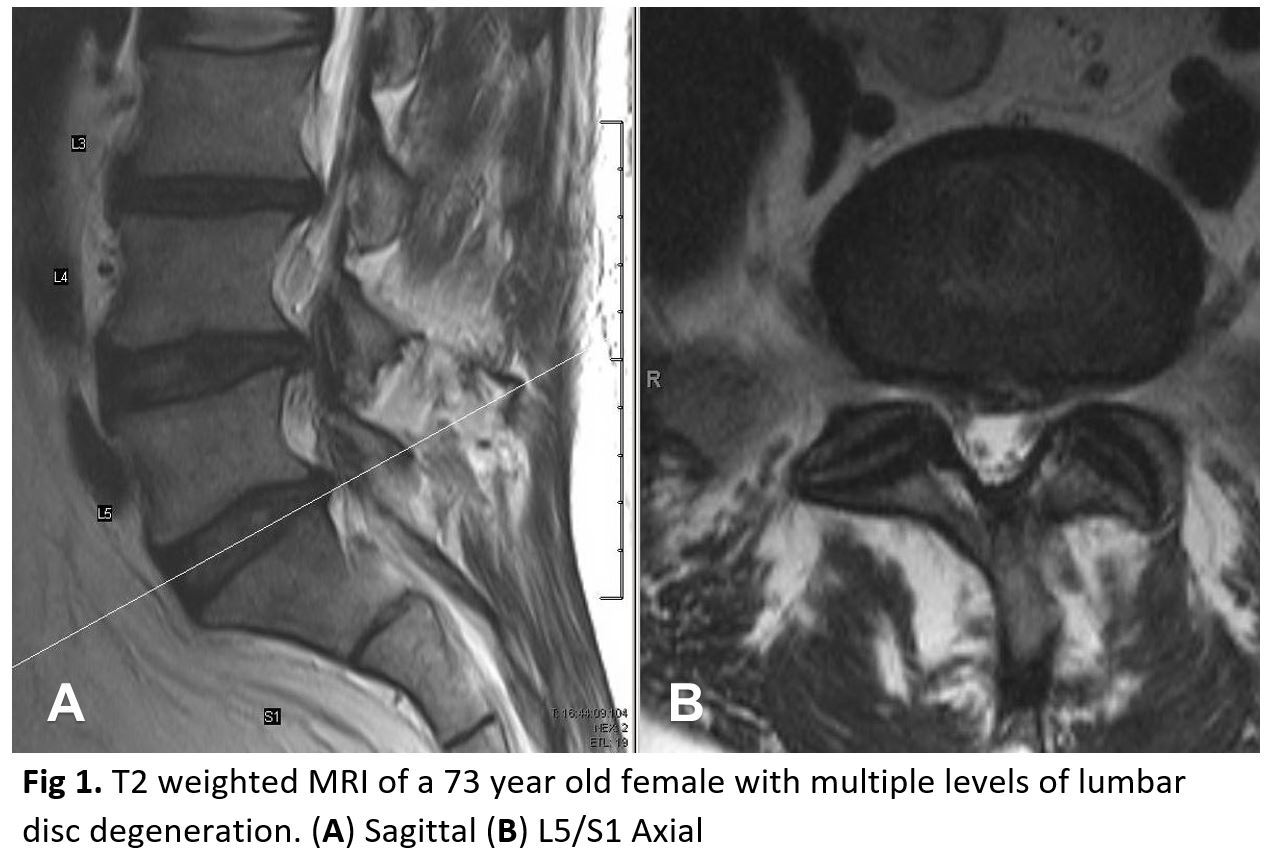

<p>Lumbar Disc Degeneration, Multiple Levels

Lumbar Disc Degeneration, Multiple Levels. Image of T2 weighted MRI of a 73-year-old female with multiple levels of lumbar disc degeneration. (A) Sagittal, (B) L5/S1 Axial.


Contributed by CJ Donnally, III, MD
