Neuroanatomy, Cranial Nerve 10 (Vagus Nerve)

Editor: Bruno Bordoni Updated: 11/7/2022 1:03:53 PM

Introduction

The vagus nerve (cranial nerve [CN] X) is the longest in the body, containing both motor and sensory functions in afferent and efferent regards. The nerve travels widely throughout the body, affecting several organ systems and regions of the body, such as the tongue, pharynx, heart, and gastrointestinal system. Because of the wide distribution of the nerve throughout the body, there are several clinical correlations of the vagus nerve (see Image. Path of the Vagus Nerve).

Structure and Function

Register For Free And Read The Full Article
Get the answers you need instantly with the StatPearls Clinical Decision Support tool. StatPearls spent the last decade developing the largest and most updated Point-of Care resource ever developed. Earn CME/CE by searching and reading articles.
  • Dropdown arrow Search engine and full access to all medical articles
  • Dropdown arrow 10 free questions in your specialty
  • Dropdown arrow Free CME/CE Activities
  • Dropdown arrow Free daily question in your email
  • Dropdown arrow Save favorite articles to your dashboard
  • Dropdown arrow Emails offering discounts

Learn more about a Subscription to StatPearls Point-of-Care

Structure and Function

The vagus nerve originates in the medulla oblongata and exits the skull via the jugular foramen (see Image. The Hindbrain or Rhombencephalon). There are 2 ganglia on the vagus nerve (superior and inferior) as it exits the jugular foramen; the spinal accessory nerve (CN XI) joins the vagus nerve just distal to the inferior ganglion (see Image. Vagus Nuclei).[1][2]

The origin of cell bodies for the vagus nerve originates from the nucleus ambiguous: the dorsal motor nucleus of X, the superior ganglion of X, and the inferior ganglion of X. The nerve fibers from the nucleus are efferent, special visceral (ESV) fibers that help to mediate swallowing and phonation. Fibers originating from the dorsal motor nucleus of X are efferent, general visceral (EGV) fibers that provide the involuntary muscle control of organs it innervates (cardiac, pulmonary, esophageal) and innervation to glands throughout the gastrointestinal tract. The superior ganglion of X provides afferent general somatic innervation to the external ear and tympanic membrane. The inferior ganglion of X provides afferent general visceral fibers to the carotid and aortic bodies; the efferent fibers of this nerve travel to the nucleus tractus solitarius; the inferior ganglion also provides taste sensation to the pharynx and relays this information to the nucleus tractus solitarius.[1][2][1][3][4][5]

The vagus nerve continues by traveling inferiorly within the carotid sheath, located posterior and lateral to the internal and common carotid arteries and medial to the internal jugular vein (see Image. Carotid Sinus Massage). The right vagus nerve travels anteriorly to the subclavian artery and then posterior to the innominate artery; it makes its descent into the thoracic cavity by traveling to the right of the trachea and posterior to the hilum on the right, moving medially to form the esophageal plexus with the left vagus nerve. The left vagus nerve travels anteriorly to the subclavian artery and enters the thoracic cavity wedged between the left common carotid and subclavian arteries; it then descends posteriorly to the phrenic nerve and posterior to the left lung, then travels medially towards the esophagus forming the esophageal plexus with the right vagus nerve.[1][3][4][5][4]

Vagus Nerve Branches

There are 4 branches of the vagus nerve within the neck: pharyngeal branches, the superior laryngeal nerve, the recurrent laryngeal nerve, and the superior cardiac nerve (see Image. Neck Anatomy).[6]

Pharyngeal branches

The pharyngeal nerve branches arise from the inferior ganglion of CN X, which contains both sensory and motor fibers. These fibers form the pharyngeal plexus–branches of this plexus innervate the pharyngeal and palate muscles (except the tensor palatine muscle); the pharyngeal plexus also supplies the innervation to the intercarotid plexus which mediates information from the carotid body.[3][6]

Superior laryngeal nerve

The superior laryngeal nerve travels between the external and internal carotid arteries; the nerve divides into internal and external branches near the level of the hyoid. The internal laryngeal nerve goes through the thyrohyoid membrane, entering the larynx. The external portion travels distally with the superior thyroid vessels. The external portion supplies the cricothyroid muscle, whereas the internal branch supplies the mucosa superior to the glottis.[6]

Recurrent laryngeal nerve

The right recurrent laryngeal nerve fibers branch from the vagus nerve near the right subclavian artery, traveling superiorly to enter the larynx between the cricopharyngeus muscle and the esophagus. The left recurrent laryngeal nerve then loops around the aortic arch distal to the ligamentum arteriosus and enters the larynx. All of the laryngeal musculatures receives supply via the recurrent laryngeal nerve except for the cricothyroid muscle (supplied by the laryngeal nerve).[3][6]

Superior cardiac nerve

While the vagus nerve is within the carotid sheath, it gives off the superior cardiac nerve, is associated with parasympathetic fibers, and travels to the heart.[7][4]

Anterior and posterior bronchial branches

The vagus nerve gives off anterior and posterior bronchial branches, the anterior branches along the anterior lung, forming the anterior pulmonary plexus. In contrast, the posterior branches form the posterior pulmonary plexus.[3][6]

Esophageal branches

Esophageal branches of the vagus nerve are anterior and posterior and form the esophageal plexus. The left vagus is anterior to the esophagus; the right vagus is posterior.[3][6]

Gastric and celiac branches

Gastric branches supply the stomach; celiac branches (mainly derived from the right vagus nerve) supply the pancreas, spleen, kidneys, adrenals, and small intestine.[1][3][1][8][4]

Embryology

The vagus nerve arises from the 4th branchial arch, which is also responsible for the development of the pharyngeal and laryngeal muscles, the laryngeal cartilages, the aortic arch, and the subclavian artery.

Blood Supply and Lymphatics

The middle meningeal artery supplies the intracranial blood supply to the vagus nerve. The extracranial blood supply is from the common carotid artery, internal carotid artery, inferior thyroid artery, external carotid artery, posterior meningeal artery, internal thoracic, bronchial, and esophageal arteries.[9][6]

The vagal system regulates the contraction of lymphatic (containing actin) cells.

Nerves

The vagus nerve has branches within the neck: the pharyngeal branches, superior laryngeal nerves, recurrent laryngeal nerves, and superior cardiac nerves. The structure and function of these nerves were described above.

Muscles

The vagus nerve has several fibers that innervate the striated muscles of the larynx and pharynx; there are 2 exceptions: the stylopharyngeus muscle (CNIX) and the tensor veli palatini muscle (V3).[3]

The vagus nerve innervates 1 muscle of the tongue: palatoglossus muscle–its function is to elevate the posterior portion of the tongue.[3]

The external branch of the superior laryngeal nerve supplies the cricothyroid muscle.[3]

The pharyngeal branches of the vagus supply levator veli palatini, salpingopharyngeus, palatopharyngeus, and the uvula.[3]

Recurrent laryngeal nerves innervate the intrinsic muscles of the larynx, except the cricothyroid muscle (the external branch of the superior laryngeal nerve).[3]

Physiologic Variants

The recurrent laryngeal nerve has 2 branches before inserting into the larynx; the branching is typically inferior to the cricoid cartilage; however, there are instances when there are more than 2 branches, and thus are called esophageal branches.[10]

There are several variations of the non-recurrent vagus nerve.

Surgical Considerations

Consideration of the branches of the recurrent laryngeal nerve is critical during surgery of the thyroid gland. Because of the proximity of the thyroid gland and the branches of the recurrent laryngeal nerve, recommendations are for maintaining all nerves in this region unless there is a compromise of the nerve itself by malignancy.[4][6][11]

The recurrent laryngeal nerve may be damaged during a cervical esophagectomy, the removal of a pharyngoesophageal diverticulum, or a gastroesophageal anastomosis after performing the trans-hiatal esophagectomy. In the diverticulum excision and the anastomosis, the recurrent laryngeal nerve is lesioned from pressure applied by retractors in the operating room.[10][11][12][11]

Damage can be done to the external laryngeal nerve at the time of ligation of the superior thyroid artery during a thyroidectomy.[4][11]

Clinical Significance

The vagus nerve is commonly tested clinically in conjugation with the glossopharyngeal nerve because of their apparent effects that often rely upon one another. A patient is often asked to open their mouth and say ‘ah,’ this should cause elevation of the uvula. If there is a lesion, the uvula shifts away from the paralyzed side. The gag reflex should not be used as a clinical exam as there can be a bilateral loss of the gag reflex in a healthy patient. If a patient is noted to have hoarseness during the physical exam, this should show the need to test the vocal cords in the patient; if there is hoarseness with a normal gag reflex and palatal elevation, this indicates a lesion of the recurrent laryngeal nerve.[3]

Vagus nerve stimulation was created to reach centrally located neurological structures by minimally invasive means. In the conventional vagus nerve stimulation technique, a device is implanted surgically under the skin in the chest, and electrical wires connect to the left vagus nerve (the left is used more often than the right, as the right vagus nerve is more likely to have branches to the heart). Vagus nerve stimulation is approved to treat epilepsy and depression; however, with the wide distribution of the vagus nerve throughout the body, stimulation is being explored for other purposes, such as the treatment of obesity.[4][13][4]

Stimulation of the larynx provides reflexes, including cough and apnea, and effects on the cardiovascular system, such as bradycardia and hypotension.

Central lesions of the vagus nerve can cause dysphagia, dysarthria, and hoarseness; uvula deviation (towards the opposite side of the lesion); and transient parasympathetic effects.

Lateral medullary syndrome (posterior inferior cerebellar artery infarction) destroys the glossopharyngeal and vagus nerves, the ambiguous nucleus, the solitary nucleus, and the spinocerebellar tracts.[14]

Other Issues

Mechanical alterations of the vagus nerve may be related to emotional problems (depression and anxiety) in patients with chronic obstructive airway disease and congestive heart failure. One of its dysfunctions could also be a source of pain in the same patient population.[15][16][17]

Media


(Click Image to Enlarge)

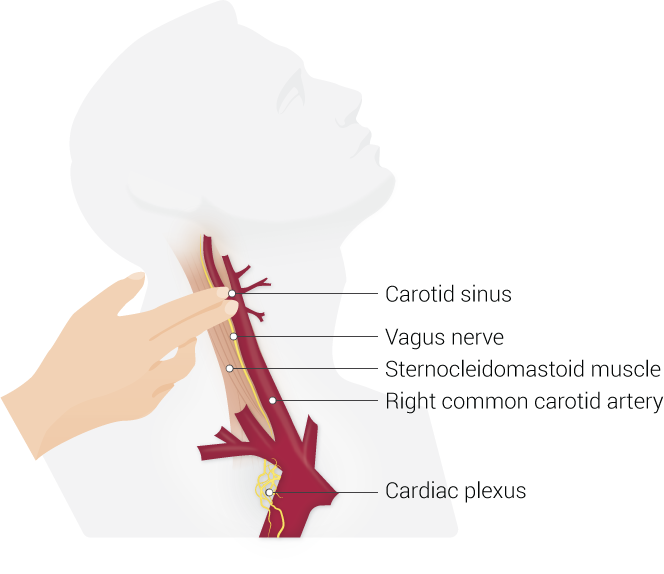

<p>Carotid Sinus Massage

Carotid Sinus Massage. Neck anatomy, including the carotid sinus, vagus nerve, sternocleidomastoid muscle, right common carotid artery, and cardiac plexus.


Contributed by B Palmer


(Click Image to Enlarge)
<p>Neck Anatomy

Neck Anatomy. The neck anatomy includes the carotid sinus, vagus nerve, sternocleidomastoid muscle, right common carotid artery, and cardiac plexus.


Contributed by T Silappathikaram


(Click Image to Enlarge)
<p>The Hindbrain or Rhombencephalon

The Hindbrain or Rhombencephalon. This is a cross-sectional view of the medulla oblongata at about the middle of the olive, pyramid, raphe, vagus nerve, arcuate fibers, ligula, and vagus nuclei.


Henry Vandyke Carter, Public Domain, via Wikimedia Commons


(Click Image to Enlarge)

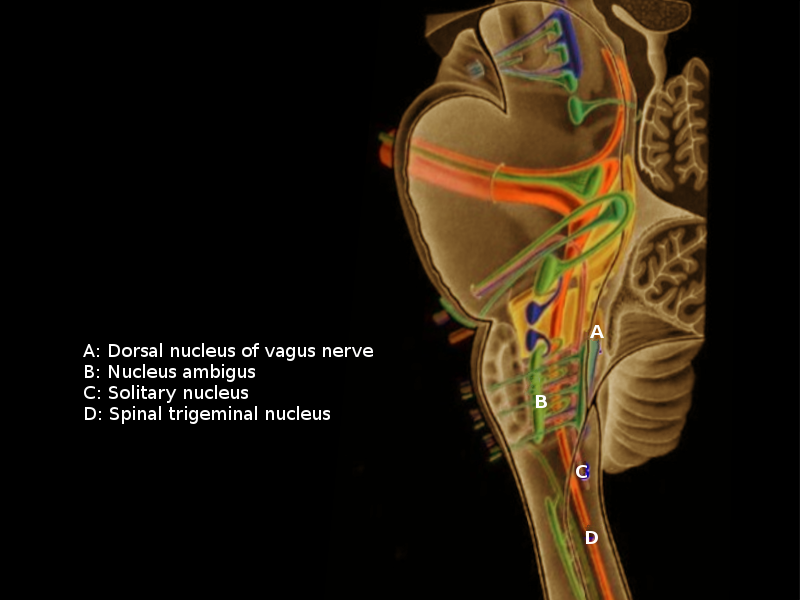

<p>Vagus Nuclei</p>

Vagus Nuclei


Contributed by O Chaigasame, MD


(Click Image to Enlarge)

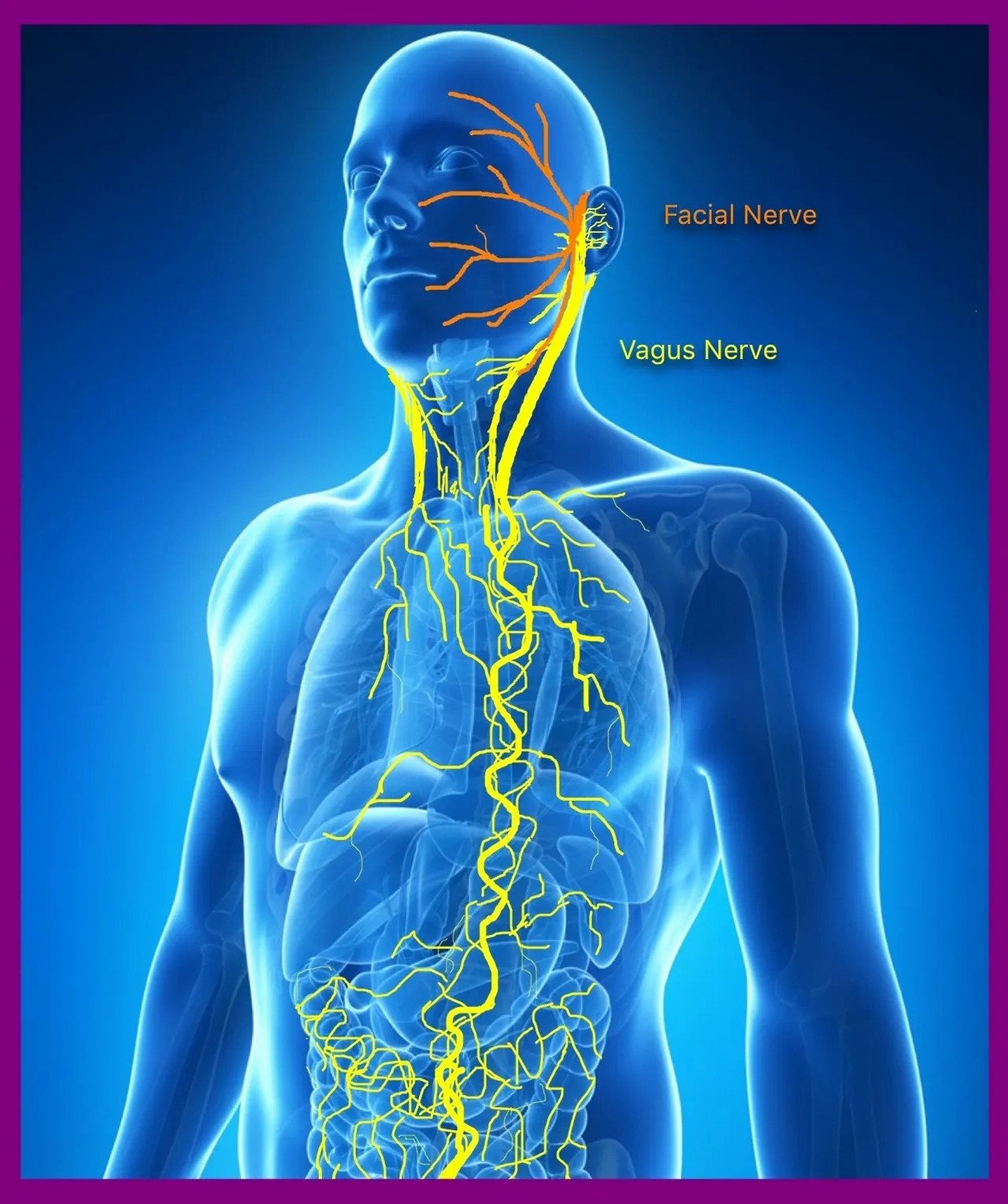

<p>Path of the Vagus Nerve. The image shows the path of the vagus nerve (and a section of the facial nerve).</p>

Path of the Vagus Nerve. The image shows the path of the vagus nerve (and a section of the facial nerve).


Contributed by B Bordoni, PhD
