Neuroanatomy, Nucleus Ambiguus

Editor: Prasanna Tadi Updated: 7/24/2023 11:49:31 PM

Introduction

The nucleus ambiguus is the common nucleus of the efferent fibers for glossopharyngeal (CN IX) and vagus (CN X) nerves. The name ‘ambiguus’ originates from its difficult-to-find location and variation in different species. Its location is in the reticular formation in the medulla oblongata. The nucleus ambiguus provides fibers that innervate the somatic muscles of the pharynx, larynx, and soft palate. Additionally, the nucleus ambiguus plays a role in parasympathetic cardiac inhibition through CN X. Unilateral lesions of the nucleus ambiguus may lead to dysphagia and hoarseness, and these characteristics are classic in lateral medullary syndrome (Wallenberg syndrome).

Structure and Function

Register For Free And Read The Full Article
Get the answers you need instantly with the StatPearls Clinical Decision Support tool. StatPearls spent the last decade developing the largest and most updated Point-of Care resource ever developed. Earn CME/CE by searching and reading articles.
  • Dropdown arrow Search engine and full access to all medical articles
  • Dropdown arrow 10 free questions in your specialty
  • Dropdown arrow Free CME/CE Activities
  • Dropdown arrow Free daily question in your email
  • Dropdown arrow Save favorite articles to your dashboard
  • Dropdown arrow Emails offering discounts

Learn more about a Subscription to StatPearls Point-of-Care

Structure and Function

The nucleus ambiguus is the location of cell bodies of motor nerves that innervate the ipsilateral muscles of the soft palate, pharynx, larynx and upper esophagus and are mainly responsible for swallowing and speaking. Its location is in the reticular formation of the medulla oblongata, the lowest part of the brainstem. The nuclei are in the lateral regions of the rostral medulla posterior to the inferior olive.

The nucleus ambiguus is involved in the motor functions of swallowing and speech. It gives rise to the efferent motor fibers of the vagus nerve (CN X) that innervate the muscles of the soft palate, larynx, pharynx, as well as the stylopharyngeus muscles and pharyngeal constrictor muscles of the glossopharyngeal nerve (CN IX).[1] The muscles controlled by the nucleus ambiguus initiate the mechanism of swallowing and phonation.

Additionally, the nucleus contributes to parasympathetic cardiac regulation. The vagus nerve, which has various motor, sensory, and autonomic functions involving multiple organ systems, is associated with three main nuclei in the brainstem: the dorsal motor nucleus, nucleus ambiguus, and nucleus solitarius.[2] Nucleus solitarius receives the baroreceptor sensory input, while the nucleus ambiguus (and dorsal motor nucleus to a lesser extent) are involved in the parasympathetic output. The nucleus ambiguus contains vagal efferent neurons that inhibit the heart rate. When heart rate increases, baroreceptor afferents are activated and terminate in the nucleus tractus solitarius (NTS) in the medulla. These signals get carried by the afferent nerve branches of  CN IX and CN X. The cells of NTS send excitatory signals to the nucleus ambiguus, which then sends inhibitory signals to the sinoatrial node via CN X to reduce the heart rate. The tonic inhibition of the heart rate serves a cardioprotective function. Conversely, when the heart rate becomes too low, this parasympathetic response is not activated, allowing the heart rate to rise appropriately.

Modulation of this parasympathetic reflex is via peptides such as bradykinin. Bradykinin, an endogenous peptide that has cardioprotective and vasodilatory properties, acts on receptors on the nucleus ambiguus to induce bradycardia.[3] Bradykinin stimulates the B1 and B2 receptors in the nucleus ambiguus, causing an increase in cytosolic calcium (Ca2+) release and depolarization of the neurons.[3] Multiple other peptides and receptors have been implicated in the complex feedback loop of cardiac vagal tone via the nucleus ambiguus, including the G-protein coupled estrogen receptor in the nucleus ambiguus.[4] Activation of this receptor induces bradycardia, indicating the cardioprotective mechanism of estrogen on the heart. The nucleus ambiguus, therefore, is an important modulator in cardiac activity and protective reflexes.

Embryology

The spinal cord is composed of three layers: ventricular zone, intermediate zone, and marginal zone. The ventricular zone develops into two collections of cells forming the alar plate and basal plate. The alar plate cells become the afferent (sensory) neurons and form the posterior (dorsal) column of the spinal cord. The basal plate cells become the efferent (motor) neurons of the anterior (ventral) spinal cord.[5] The nucleus ambiguus arises from the basal plate motor neuroblasts, which also gives rise to dorsal motor nucleus of the vagus nerve, the inferior salivatory nucleus of the glossopharyngeal nerve, and hypoglossal nucleus. The separation between the sensory and motor neurons is maintained in the brainstem and the sulcus limitans, which is a narrow groove on the floor of the fourth ventricle, maintains this separation.

Blood Supply and Lymphatics

The medulla oblongata, the brainstem region location of the nucleus ambiguus, receives its blood supply from the vertebrobasilar system. The dorsolateral region of the medulla receives its blood supply from the posterior inferior cerebellar artery (PICA), a branch of the vertebral artery. The medial medulla gets supplied by the anterior inferior cerebellar artery (AICA), which branches from the basilar artery.

Nerves

The nucleus ambiguus provides innervation to the muscles of the soft palate, larynx, and pharynx by contributing motor fibers to three cranial nerves: glossopharyngeal (CN IX), vagus (CN X), and spinal accessory (CN XI)  nerves. Axons leaving the nucleus ambiguus exit the medulla dorsally to the inferior olive to join fibers with the three cranial nerves. These three cranial nerves innervate the striated muscles of the soft palate, larynx, pharynx, and upper part of the esophagus. The glossopharyngeal nerve innervates the stylopharyngeus muscle; the vagus nerve innervates palatal muscles, pharyngeal and laryngeal muscles, and striated muscle of esophagus-palatoglossus; the spinal accessory nerve innervates the cranial portion of the laryngeal muscles.

Additionally, the nucleus ambiguus receives fibers from neighboring nuclei, such as the sensory spinal trigeminal nucleus and nucleus solitarius to comprise the gag reflex. The gag reflex is composed of a sensory and motor part. The sensory limb is from CN IX, which synapses in the spinal trigeminal nucleus and the nucleus solitarius. The motor limb is from CN X from the nucleus ambiguus, and stimulation of the motor limb causes movements of the tongue and soft palate muscles.

Clinical Significance

The nucleus ambiguus is associated with both motor functions involving the muscles of the soft palate, throat, and tongue, as well as autonomic processes such as the gag reflex and cardiac parasympathetic activity. Lesions and ischemic events that affect the lateral medulla may compromise the nucleus ambiguus.

Lateral medullary syndrome, also known as Wallenberg syndrome or PICA syndrome, is a constellation of neurological symptoms that occurs due to ischemia in the lateral part of the medulla. The blockage most often occurs in the vertebral artery or PICA, a branch of the vertebral artery that supplies the lateral medullary region. The classic presentation includes dizziness, loss of balance, difficulty swallowing, and slurred speech. Unilateral lesions that affect the nucleus ambiguus cause an ipsilateral paralysis of the soft palate, larynx, and pharynx. Specifically, the symptoms of dysphagia, dysphonia, and dysarthria are due to the loss of the nucleus ambiguus. Although hoarseness can occur, speech is usually intelligible. Dysphagia is typically not severe; however, a feeding tube might be necessary for transient aphagia resulting from the lesion. During gag reflex testing, the palatal muscles are unable to contract and the uvula contracts away from the affected side.

Besides motor loss, lesions affecting the nucleus ambiguus can also disrupt the sympathetic and parasympathetic cardiac reflexes, resulting in orthostatic hypotension.[6] Although lateral medullary syndrome most often occurs from a stroke, rarely neoplastic disease such as a medullary glioma might also cause identical symptomology.[7] However, whereas lateral medullary syndrome causes an acute onset of symptoms, neoplastic processes are differentiated by a more gradual process and worse prognosis.

The long-term outlook for patients with lateral medullary syndrome depends on the size and location of the area damaged by the infarct. For example, the severity of dysphagia following a lateral medullary stroke was dependent on the extent of damage and location in the lateral medulla.[8] Notably, damage to the nucleus ambiguus appears to disrupt the swallowing mechanism in post-lateral medullary syndrome patients. The mechanical sequence of swallowing was reversed in a cohort of patients with this syndrome.[9] Additionally, the syndrome correlates with long-term dizziness and ipsilateral nystagmus sequelae.[10]

Bilateral lesions of the nucleus ambiguus completely paralyze the larynx, and the inability to move vocal cords during inspiration can cause death. Bilateral lesions are rare and most often seen in severe amyotrophic lateral sclerosis (ALS).

Sandifer syndrome is a lesser-known disorder mainly seen in infants that also implicated the nucleus ambiguus in its reflex arc. This syndrome results in reflex torticollis in infants with gastroesophageal regurgitation syndrome or a hiatal hernia. This reflex is under the mediation of the afferents traveling to the nucleus solitarius, which reaches the nucleus ambiguus and the dorsal vagal nucleus. From these nuclei, visceral efferent nerves travel via anastomosis to reach the accessory nerve and thus contract the trapezius and sternocleidomastoid muscles. The head positioning from torticollis is hypothesized to provide relief from acid regurgitation.[11]

Cardiac vagal neurons, such as the nucleus ambiguus and dorsal motor neuron, regulate cardiac parasympathetic tone. However, in disease states such as myocardial infarction, cardiac vagal activity is reduced. This situation causes undue stress on the heart, while restoration of parasympathetic function can decrease cardiac work and lessen the risks of ischemia and arrhythmias.[12] Additionally, diabetes disrupts the baroreceptor sensitivity, and researchers found it to cause nucleus ambiguus degeneration in mice.[13] This finding explains why reflex-bradycardia may suffer impairment in patients with diabetes.

The nucleus ambiguus, therefore, is implicated in a wide range of clinical pathologies due to its critical control of speech, swallowing, and autonomic functions.

Media


(Click Image to Enlarge)

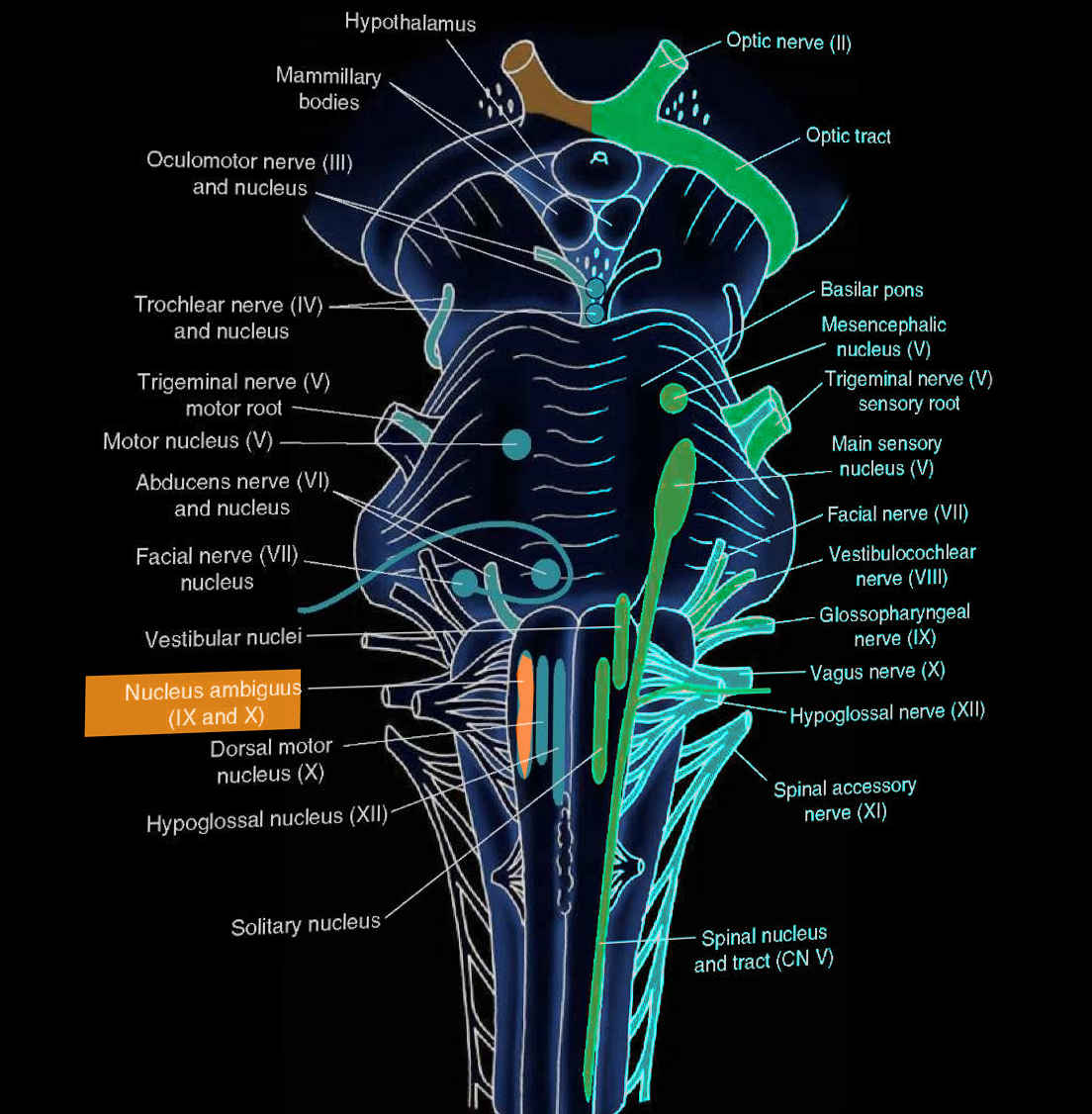

Nucleus ambiguus
Nucleus ambiguus
Image courtesy O.Chaigasame

References


[1]

Sonne J, Lopez-Ojeda W. Neuroanatomy, Cranial Nerve. StatPearls. 2023 Jan:():     [PubMed PMID: 29261885]


[2]

Baker E, Lui F. Neuroanatomy, Vagal Nerve Nuclei. StatPearls. 2024 Jan:():     [PubMed PMID: 31424793]


[3]

Brailoiu E, McGuire M, Shuler SA, Deliu E, Barr JL, Abood ME, Brailoiu GC. Modulation of cardiac vagal tone by bradykinin acting on nucleus ambiguus. Neuroscience. 2017 Dec 4:365():23-32. doi: 10.1016/j.neuroscience.2017.09.034. Epub 2017 Sep 23     [PubMed PMID: 28951324]


[4]

Brailoiu GC, Arterburn JB, Oprea TI, Chitravanshi VC, Brailoiu E. Bradycardic effects mediated by activation of G protein-coupled estrogen receptor in rat nucleus ambiguus. Experimental physiology. 2013 Mar:98(3):679-91. doi: 10.1113/expphysiol.2012.069377. Epub 2012 Oct 26     [PubMed PMID: 23104934]

Level 3 (low-level) evidence

[5]

Thau L, Reddy V, Singh P. Anatomy, Central Nervous System. StatPearls. 2023 Jan:():     [PubMed PMID: 31194336]


[6]

Huynh TR, Decker B, Fries TJ, Tunguturi A. Lateral medullary infarction with cardiovascular autonomic dysfunction: an unusual presentation with review of the literature. Clinical autonomic research : official journal of the Clinical Autonomic Research Society. 2018 Dec:28(6):569-576. doi: 10.1007/s10286-018-0502-6. Epub 2018 Jan 24     [PubMed PMID: 29368226]


[7]

Hanyu H, Yoneda Y, Katsunuma H, Miki T, Miwa T. [Wallenberg's syndrome caused by a brain tumor--a case report and literature review]. Rinsho shinkeigaku = Clinical neurology. 1990 Mar:30(3):324-6     [PubMed PMID: 2163789]

Level 3 (low-level) evidence

[8]

Cho YJ, Ryu WS, Lee H, Kim DE, Park JW. Which Factors Affect the Severity of Dysphagia in Lateral Medullary Infarction? Dysphagia. 2020 Jun:35(3):414-418. doi: 10.1007/s00455-019-10043-8. Epub 2019 Aug 3     [PubMed PMID: 31375916]


[9]

Nakao M, Oshima F, Maeno Y, Izumi S. Disruption of the Obligatory Swallowing Sequence in Patients with Wallenberg Syndrome. Dysphagia. 2019 Oct:34(5):673-680. doi: 10.1007/s00455-018-09970-9. Epub 2019 Jan 7     [PubMed PMID: 30617841]


[10]

Amari K, Kudo Y, Watanabe K, Yamamoto M, Takahashi K, Tanaka O, Johkura K. Spontaneous, headshaking, and positional nystagmus in post-lateral medullary infarction dizziness. Journal of the neurological sciences. 2016 Sep 15:368():249-53. doi: 10.1016/j.jns.2016.07.019. Epub 2016 Jul 15     [PubMed PMID: 27538643]


[11]

Lehwald N, Krausch M, Franke C, Assmann B, Adam R, Knoefel WT. Sandifer syndrome--a multidisciplinary diagnostic and therapeutic challenge. European journal of pediatric surgery : official journal of Austrian Association of Pediatric Surgery ... [et al] = Zeitschrift fur Kinderchirurgie. 2007 Jun:17(3):203-6     [PubMed PMID: 17638161]

Level 3 (low-level) evidence

[12]

Wang J, Irnaten M, Neff RA, Venkatesan P, Evans C, Loewy AD, Mettenleiter TC, Mendelowitz D. Synaptic and neurotransmitter activation of cardiac vagal neurons in the nucleus ambiguus. Annals of the New York Academy of Sciences. 2001 Jun:940():237-46     [PubMed PMID: 11458681]

Level 3 (low-level) evidence

[13]

Yan B, Li L, Harden SW, Epstein PN, Wurster RD, Cheng ZJ. Diabetes induces neural degeneration in nucleus ambiguus (NA) and attenuates heart rate control in OVE26 mice. Experimental neurology. 2009 Nov:220(1):34-43. doi: 10.1016/j.expneurol.2009.07.006. Epub 2009 Jul 15     [PubMed PMID: 19615367]

Level 3 (low-level) evidence
